Our production and exporting includes different types of carbon backed steel alloys and metallic alloys. There are certain alloys we export in our main segments.

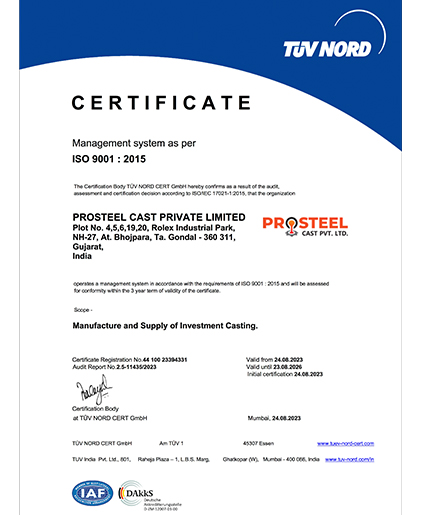

Prosteel Cast Pvt. Ltd. believes in quality and Customer’s satisfaction by providing the quality casted Parts and Components. Quality improvement on regular basis is the moto of Prosteel Cast Pvt. Ltd. and We comply with our quality management system as per requirement of ISO:9001-2008 standard.

Our manufacturing unit is equipped with Quality control equipments, such as Spectrometer for Chemical Analysis, Universal Testing Machine for testing physical properties, Hardness Impact Testing Machine, All types of measuring instruments, etc.

Chemical Analysis:

CCD based spectrometer capable of testing for Fe, Ni, Co, based materials.
Poured heats are tested on-line through Spectrometer.
Scraps are tested before using.
Specimens are stored for particular period.

Physical Testing:

Universal Testing Machine.
Hardness Testing Machine.
Impact test Machine.
Metallurgical microscope.

Materials:

Prosteel Cast produces casting parts in the range of 15 grams to 150 kilograms in a singlepiece from any ferrous and non-ferrous metals as per Customer’s specification and International Standard Specifications like ASTM, AISI, BS, DIN, JIS, SAE, Etc.

Materials Materials Grade
Carbon Steel WCA, WCB, WCC, LCA, LCB, LCC, EN-8, EN-9, EN-36, Etc.
Low Alloy Steel WC1, WC4, WC5, WC6, WC9, WC11, C5, C12, C12A, Etc.
Austenitic Stainless Steel CF8, CF8M, CF3, CF3M, CF8C, CF10, CK20, CH20, CN7M, CG8M, CG3M, Etc.
Martensitic Stainless Steel CA15, CA40, CA6NM
Duplex Stainless Steel CD4MCu, Grade 1A, 2A, 3A, 4A, 5A, 6A
PH Stainless Steel CB7Cu1, CB7Cu2, 15-5-PH, 17-4-PH
Super Alloys HAST-B, HAST-C, HAST ALLOY 22C, MONEL, STELLITE- 6/12, 50CR-50 NICB, CZ 100, M35-1, M35-2, CN-7M, CY-40, CW12MW, CW-6M, CX2MW, Etc.
Non-Ferrous GUN METAL, BRASS, BRONZE, ALUMINIUM BRONZE, COPPLER ALLOY GREDES & ALUMINIUM ALLOYS LIKE LM4, LM6. Etc.

Tolerances:

Permissible Deviations on Dimensions, as per International Standard: VDG P690. All dimensions are in millimeters.

Nominal size mm D1 Tolerance (general dimensions) D2 Tolerance (some functional dimensions)
0 to 6 ±0.15 ±0.12
6 to 10 ±0.18 ±0.14
10 to 18 ±0.22 ±0.17
18 to 30 ±0.26 ±0.20
30 to 50 ±0.40 ±0.31
50 to 80 ±0.45 ±0.37
80 to 120 ±0.55 ±0.44
120 to 180 ±0.80 ±0.65
180 to 250 ±1.20 ±0.95
250 to 315 ±1.30 ±1.10
315 to 400 ±1.80 ±1.40
